Banana-Style Commercial Cantilever Umbrella
Commercial banana-style cantilever umbrella with a curved offset arm, double-tier vented canopy, reinforced 8-rib frame, crank operation, and adjustable canopy height for patios, poolside spaces, resorts, and outdoor furniture programs.
Specifications
- Product Code
- SN-CU05
- Product Type
- Commercial Cantilever Umbrella
- Canopy Shape
- Octagonal Displayed Configuration
- Frame
- Reinforced Metal Frame
- Support Structure
- Curved Banana-Style Cantilever Arm
- Canopy
- Double-Tier Vented Canopy
- Opening System
- Manual Crank System
- Height Adjustment
- Sliding Handle Adjustment
- Fabric
- Outdoor Fabric / Custom Options
- Customization
- Size, Fabric, Color, Finish & Branding
- Base
- Optional, Sold Separately
Product Overview
The SN-CU05 is a commercial banana-style cantilever umbrella distinguished by its curved offset support arm, double-tier vented canopy, reinforced 8-rib structure, and manual crank operation.
The curved cantilever layout positions the main support structure away from the shaded area, helping keep dining tables, lounge furniture, and seating arrangements free from a conventional center pole.
The displayed configuration features a light neutral canopy with a dark frame and curved upper support arm. Canopy size, fabric, color, frame finish, branding, and compatible base options can be configured according to order requirements.
Key Features
- Distinctive curved banana-style cantilever structure
- Offset support for open usable shade beneath the canopy
- Double-tier vented canopy
- Reinforced 8-rib canopy structure
- Triangular support geometry around the main arm
- Manual crank opening and closing system
- Sliding handle for canopy height adjustment
- Multiple weighted and fixed base options
- Custom fabric colors, finishes, branding, and packaging available
Key Construction & Operation
Curved Banana-Style Cantilever Structure
The defining feature of SN-CU05 is its long curved upper support arm.
This creates the characteristic banana-style profile while positioning the support post away from the center of the shaded area.
The offset arrangement provides more usable space beneath the canopy for dining tables, lounge furniture, poolside seating, and other commercial outdoor layouts.

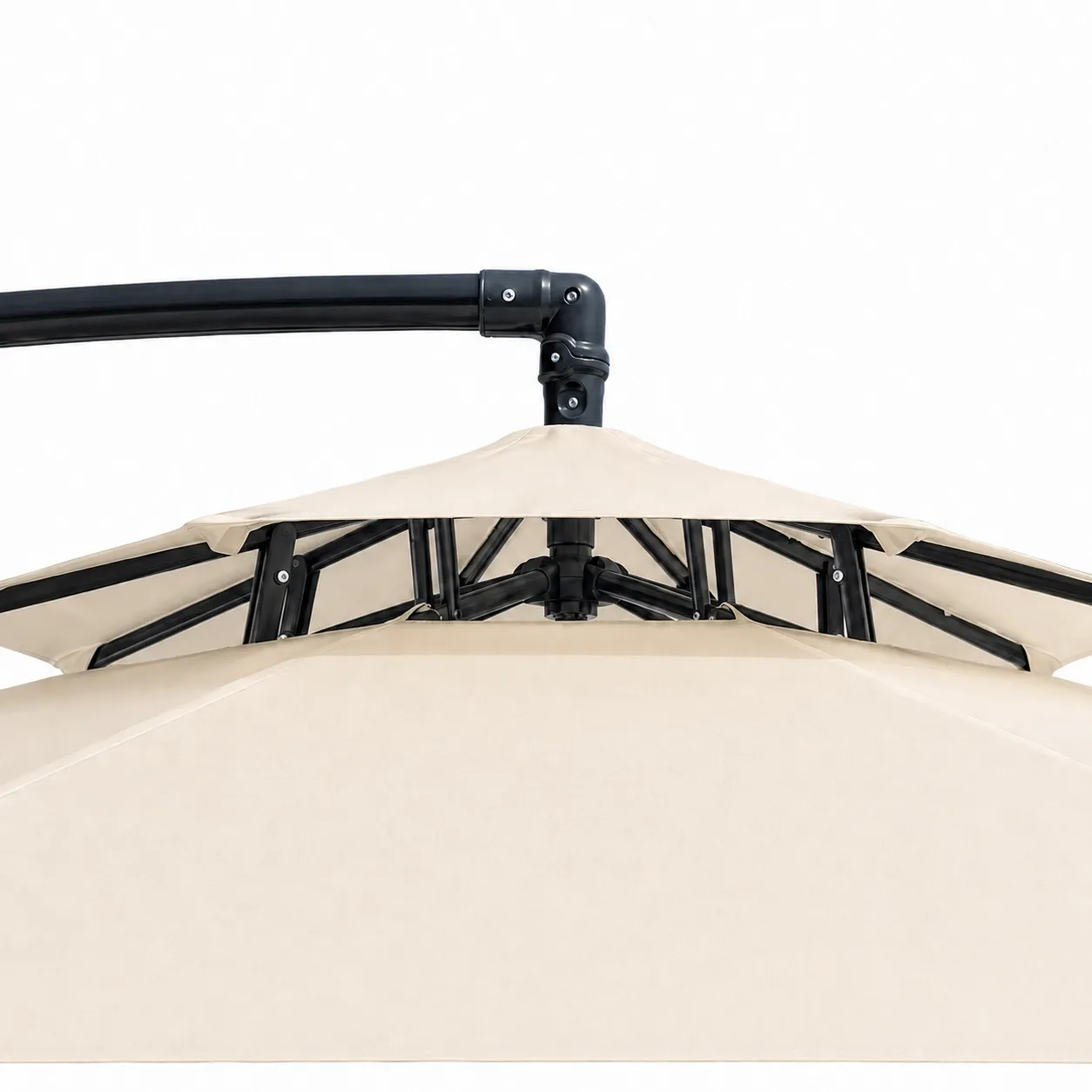

Double-Tier Vented Canopy
The canopy features a raised double-tier vented construction.
The opening between the upper and lower canopy sections allows air to move through the top during normal use while creating a more dimensional canopy profile.
The vented construction should not be treated as windproof. The umbrella should be closed during strong winds, storms, and unsuitable weather conditions.

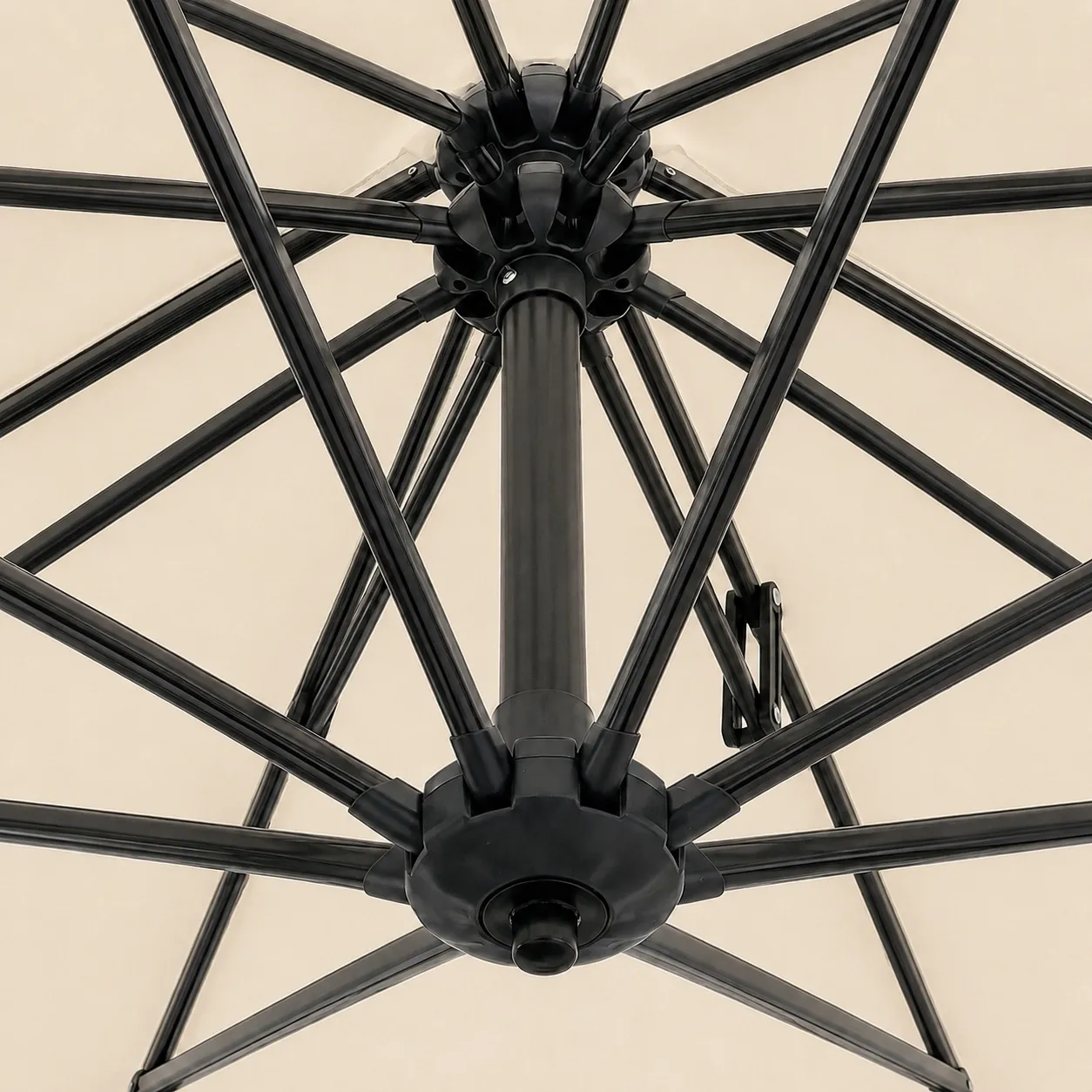

Reinforced 8-Rib Structure
The canopy is supported by an 8-rib radial frame designed to distribute support around the canopy.
A reinforced hub assembly connects the ribs and supporting components beneath the canopy.
Frame dimensions, rib profiles, material specifications, wall thickness, and hardware are confirmed according to the selected umbrella size and final production requirements.

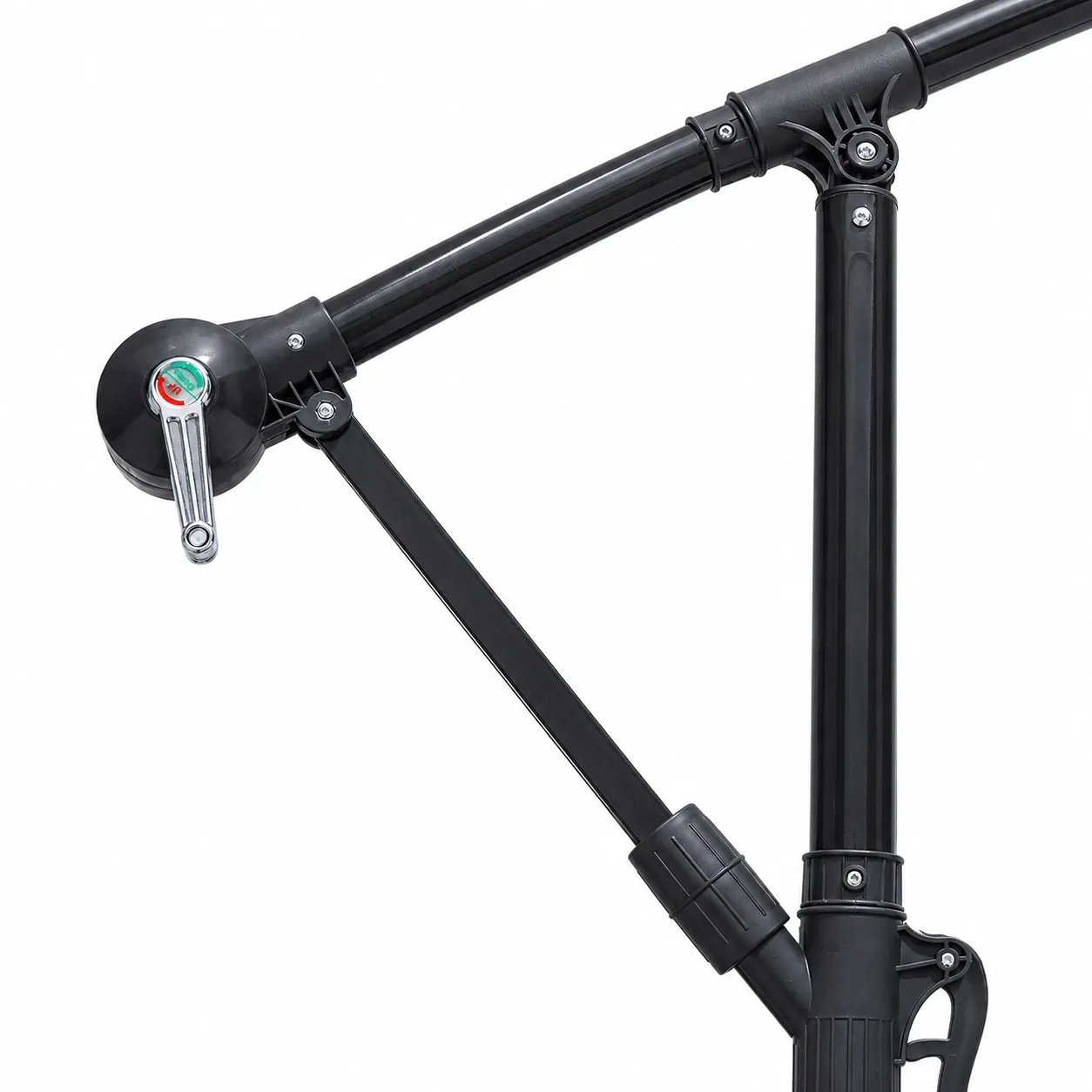

Triangular Support Structure
A triangular supporting arrangement connects the curved upper arm, vertical support section, and operating assembly.
This structural geometry helps support the extended cantilever arm while maintaining the characteristic curved profile of the umbrella.
Connection joints, fasteners, and component dimensions are confirmed according to the selected frame specification.
Manual Crank Opening System
The umbrella uses a manual crank mechanism for opening and closing the canopy.
The operating system is designed for straightforward manual use, with clockwise and counter-clockwise crank operation used to open or close the umbrella according to the mechanism configuration.

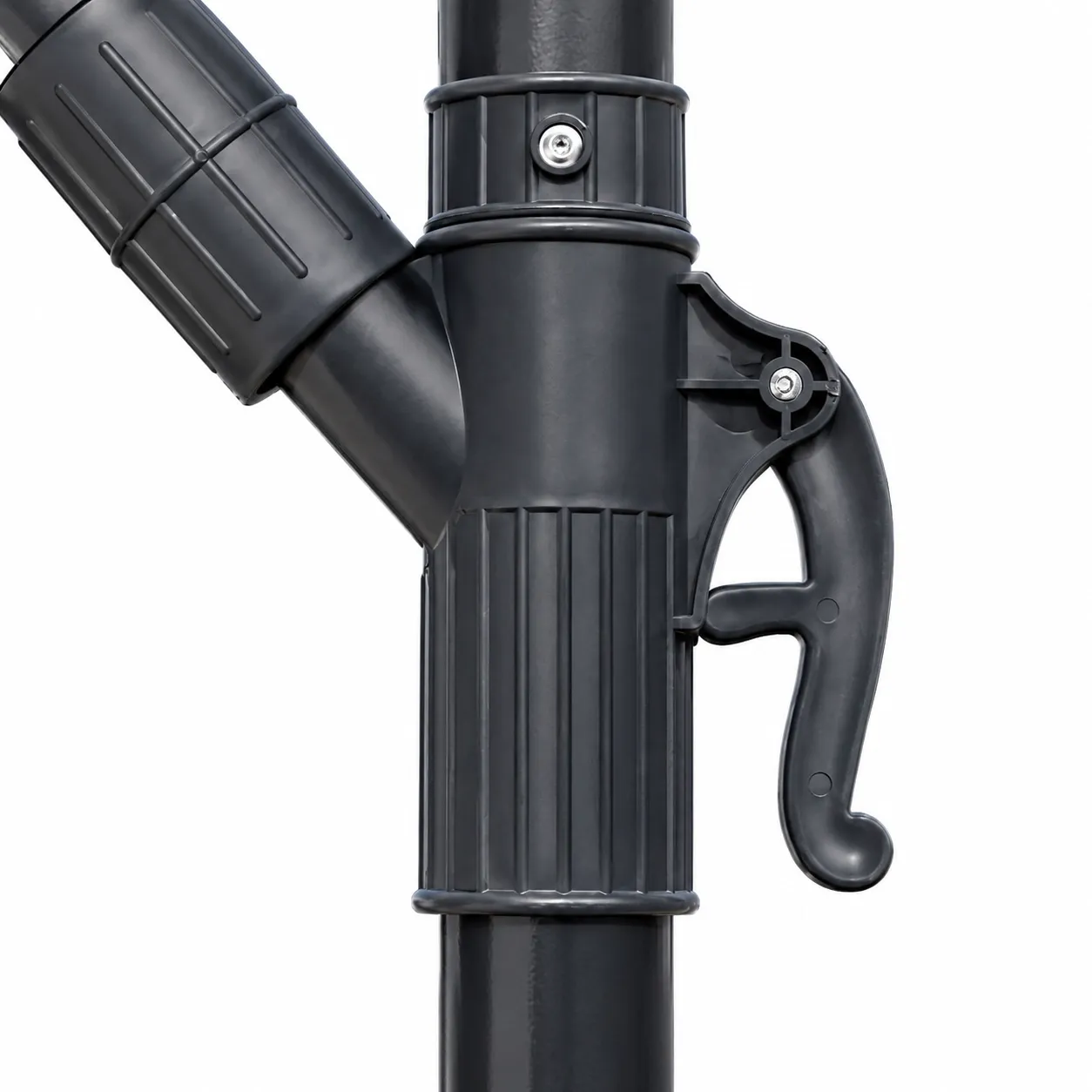

Adjustable Canopy Height
A sliding handle assembly on the vertical support allows the canopy position to be adjusted vertically.
This provides additional flexibility for different furniture layouts, shade requirements, and installation environments.
Adjustment range and operating details are confirmed according to the selected configuration.
Suitable Applications
- Restaurant and café terraces
- Hotel and resort outdoor areas
- Poolside lounge spaces
- Commercial patios and courtyards
- Villas and outdoor living areas
- Garden and leisure spaces
- Outdoor furniture programs
- Project-based outdoor installations
Customization Options
SN-CU05 can be configured for different commercial environments, outdoor furniture programs, distributors, and project requirements.
Option | Available Customization |
|---|---|
Canopy | Size, canopy configuration, and applicable shape options |
Fabric | Fabric type, weight, and color |
Frame | Applicable frame finish and color options |
Vent | Double-tier canopy configuration |
Branding | Canopy logo printing and applicable custom graphics |
Base | Weighted, freestanding, or applicable fixed solutions |
Packaging | Standard export or private-label packaging |
Available customization depends on the selected specification and order quantity.
Fabric swatches, frame finishes, logo placement, base requirements, and applicable material information can be reviewed before production for qualified orders.
Base & Installation Planning
Correct base selection is particularly important for a cantilever umbrella because the canopy is supported from one side of the structure.
SN-CU05 can be paired with different freestanding or fixed installation solutions according to umbrella size, frame specification, installation surface, and intended application.
Compatible options may include:
- Fillable weighted bases
- Wheeled fillable bases
- Stone or marble bases
- Cross bases with additional weights
- Surface-mounted systems
- Project-specific fixed installation solutions
The suitable base type and total weight should be selected according to canopy size, frame specification, installation conditions, and expected site exposure.
Umbrella bases are optional and quoted separately unless otherwise specified.
Use & Wind Considerations
Canopy size, base selection, installation method, site exposure, and operating conditions all affect the performance of a cantilever umbrella.
For rooftop, waterfront, coastal, open terrace, or other higher-exposure locations, site information should be reviewed before selecting the final umbrella and base configuration.
The double-tier vented canopy supports airflow but should not be considered windproof.
Commercial umbrellas should be closed during strong winds, storms, and severe weather.
MOQ, Lead Time & Packaging
Minimum order quantity, production lead time, and packaging depend on the selected canopy size, frame configuration, fabric, finish, branding requirements, and order quantity.
Standard export packaging and private-label packaging options can be discussed according to order requirements.
Please contact us with your required configuration, quantity, and customization details for confirmation.
Request a Quotation
For an accurate product recommendation and quotation, please provide:
- Preferred canopy size
- Estimated order quantity
- Application or project type
- Installation environment
- Delivery country
- Fabric and color requirements
- Preferred frame finish
- Logo or branding requirements
- Base or mounting requirements
- Required delivery date
For rooftop, waterfront, coastal, or other exposed installations, site photos and basic installation information are also helpful.
If the exact specification has not yet been confirmed, simply tell us the intended application, approximate coverage area, and quantity.
We can recommend a suitable configuration before preparing the quotation.
